Features and Specifications:

AC power:  100~240V AC，50/60Hz

Rated power 800W@220V

Lamp: 550W LED

Rated life: 20000h

LUX:  5m 168000LX

Beam Angle:  3°~40°

Color temperature:  7000K

Angle of rotation Horizontal scanning: 540°

Vertical scanning: 270°

Shutter:  0~30HZ

Colour:  1 Color Plate (8 colors + White light)，CMY , CTO

Pattern: 1 Fixed Pattern Plate (12 patterns + White light)

7- rotating pattern Prism 8 prism + single six row prism

Dimming:  0-100% linear adjustment

Frost: Independent atomization Focus DMX linear adjustment

Control and Programming: DMX512,RDM, master/slave synchronous control mode, self-walking mode, single scene mode

Channel:  22CH/26CH

Protection rating:  IP20

Housing:  High temperature resistant flame retardant plastics

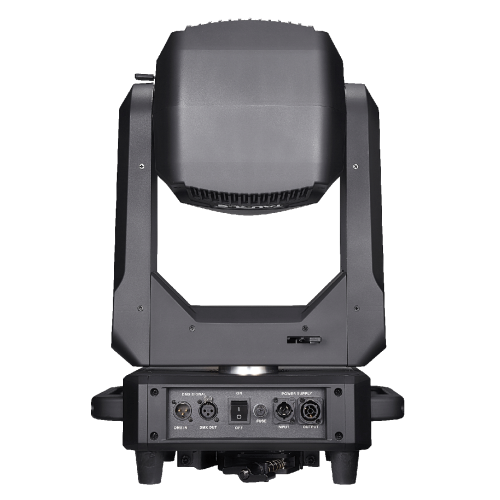

AC power in/thru Seetronic PowerCon

DMX data in/out 3-pin locking XLR

Weight: 23.3kg

Ambient temperature:  -20℃~40℃

Lamp size: 383x274x668mm

package size:  750x360x465mm
