Features and Functions:

Light Source :Main Light: 5 x 120W RGBL LEDs

Outer Circle: 120 x 0.5W RGB LEDs

Life Expectancy: 20,000 hours*

Total Lumen Output of Fixture: 13,000 lumens

Beam Angle : 3°-30°

Field Angle : 4°-35°

4 touch button control panel

Protocols: DMX512,RDM,Art-Net,sACN

Control Channels: 41/71/75/85/170

Firmware Upgrade: Upgrade via DMX link or USB stick

Pan Movement: 59°

Tilt Movement: 221°

Automatic Pan/Tilt position correction

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color macro effects

Outstanding color mixing

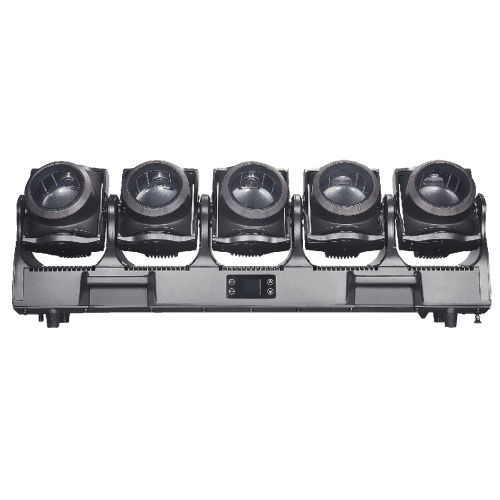

5 individual light heads with pan/ tilt movement, can be controlled individually

The outer circle of the light head has 24 LEDs, which can be controlled individually

Sharp and saturated beam effects

Linear focusing structure

Input Voltage Range: 100-240Vac; 50/60Hz

Power Consumption: 900W

Power In/Out: Waterproof power connector in/out

Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

Fixture Dimensions:

Width: 1,000 mm (39.4")

Depth: 192 mm (7.5")

Height: 350 mm (13.7")

Weight: 30 kg (66.2 lbs)

Standard: G.W.: 120 kg (264.6 lbs) (two-pack loader case)
