LED Pixel Curve 1060 IP™


Ordercode:LPC1060 IP

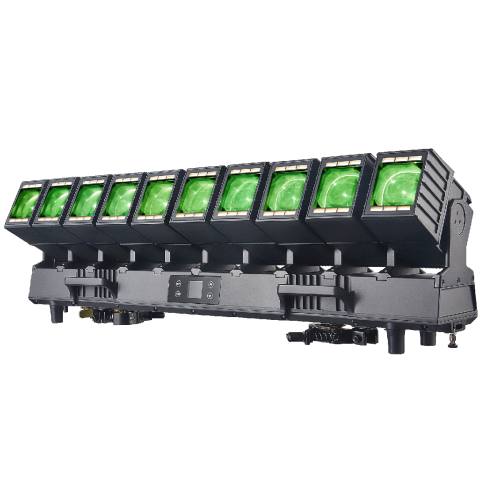

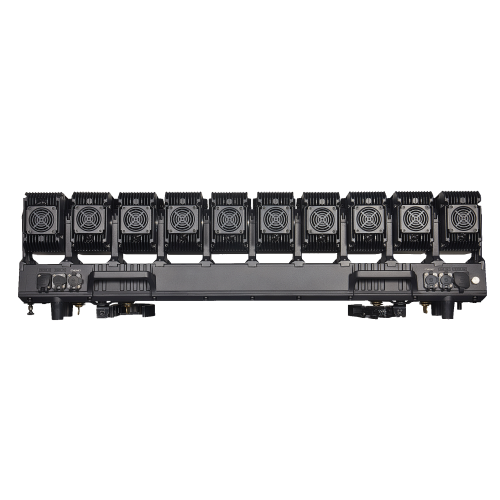

       LPC1060 is an IP65-rated, pixel-mappable, motorized RGBW LED batten set to stun any audience with its lifelike color and energetic appeal. The secret to the LPC1060 is its 10 individually controllable tilting heads that can be pixelmapped to create eye-catching effects . Line up multiple  LPC1060 fixtures for seamless edge-to-edge effects with consistent pixel pitch. A vast range of pre-built effects awaits any programmer,  including virtual gobos, movement macros, and foreground/background color control.

Features and Fucntions:

 Voltage: AC100~240V 50/60HZ

 Maximum power: (900W)

 Light beads: 10 four-in-one 60 watt LED light beads

 Auxiliary light beads: 360 dual-color (white light + gold light) 0.5W

 Control mode: DMX512, self-walking, master-slave, voice-controlled, with RDM function.

 Channels: 282CH/262CH/216CH/56CH/29CH/142CH

 Dimming: 32bit 0~100% linear dimming

 Features: single swing + staining + beam

 Working temperature: -30℃ ~ 50℃

 Frequency: 1~25HZ

 Software upgrade: Upgrade software through DMX connection

 Signal input/output

 Power Socket DMX512 input/output / waterproof power connector input/output

 Protection class: IP65

 Excellent mixing effect;

 Built-in splicing pin, can achieve rapid machine splicing;

 Appearance: metal, black;
