TECHNICAL PARAMETERS

Light source: 600W RGBLAC LED(Each LED 100W)+32x0.5W RGB LED

Beam angle:55° optional angle

Color temperature: 1800~8500 K

LED life:5000 H

EFFECTFast strobe: 1 ~ 25Hz

LED refresh frequency: 900~ 25KHz

CONTROL AND PROGRAM

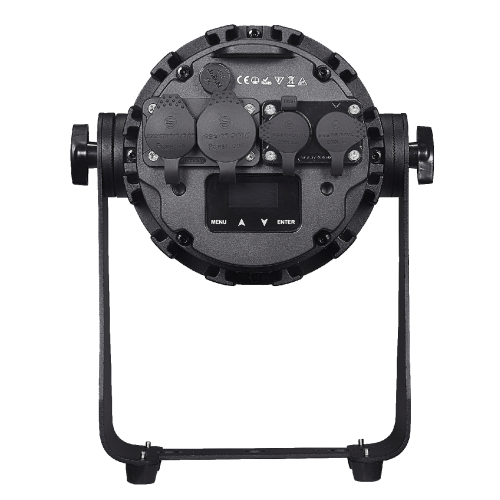

4 touch buttons

Control panel: OLED display screen

Control mode: DMX512, RDM

DMX channel mode: 14

Control channels: 1CH/2CH/3CH/4CH/6CH/7CH/13CH/21CH/RGB10CH/RGB15CH/CMY10CH/

CMY15CH/9CH/29CH

SOFTWARE UPGRADE

updating software through a DMX connection

Intelligent temperature protection ensures the service life of LEDs

LIGHT BODY STRUCTURE AND HEAT DISSIPATION

Aluminum alloy die-cast structure

Silent fan

ELECTRICAL AND INTERFACE

Input voltage: 110-240V~50/60Hz

Power: 400W Maximum

Power socket: Waterproof powercon ture1 input/output

Signal interface:

3pin(5pin) XLR waterproof socket input/output

Dimention:23.5*24.9*19.3cm

Net weight :3.4kg

WORK ENVIRONMENT

operating temperature: -40°C to 45°C

Maximum surface temperature: 45°C

IP level: IP65

INSTALL

Can be installed horizontally or vertically

Safety rope connection hole

Can be spliced left, right, up, and down
