Technical Specifications:Technical Specifications

Power Voltage:

100-240V~ 50/60Hz

Power Consumption:

500W

Light Source:

Front side: 5pcs 60w RGBW 4in1 LED Pixel control

Back: 42pcs 3W 3535 White LED + 84pcs 0.3W 5050 RGB 3in1 LED

Back side: 14 sections pixel control, each section 9pcs led.

Zoom Angle:

2.8°-50°

Movement:

Pan/Tilt movement: 360°infinite rotating

Fixation: Pan/Tilt Lock

Dimmer/Shutter:

Smooth dimming from 0-100%; outstanding strobe effect with variable speed

Control:

DMX Channel: 24/29/105 Channels

Control Mode: DMX512,Auto

Firmware Upgrade via DMX link

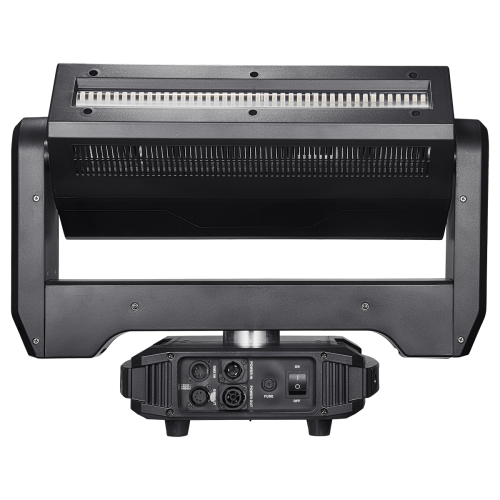

Construction:

Display: LCD display

Battery backup, for user setup without power connection

Data In/Out: 3-pin XLR (5-pin XLR is optional),

Power In/Out: Power Connector in/out

Artnet: Artnet in+out

Protection Rating: IP20

Features:

With zoom and strobe function

Beam mode: 5 LEDs can be controlled individually

Strobe mode: 18 zone can be controlled individually

Linear motorized zoom

Outstanding color mixing effect

Dimensions/Weight:

506x215x385.6mm, 15kgs
